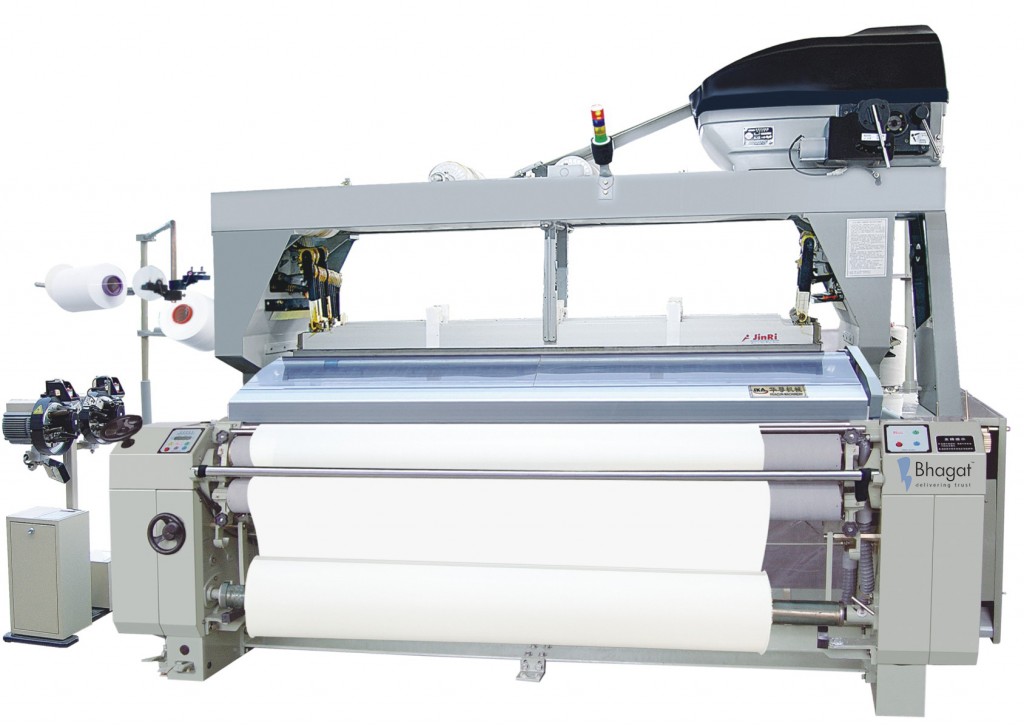

WATER JET LOOMS MACHINE![Water-Jet-textile-journal]()
WATER JET LOOMS
MODEL – BW – 851
TECHNICAL SPECIFICATION | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Nozzles | One / Two / Three / Four | ||||||||||
Pumps | One / Two | ||||||||||
Machanical Speed | 800 RPM | ||||||||||
Reed space (in cm) | 150 | 170 | 180 | 190 | 230 | 280 | 330 | ||||
Denier Range | 30 – 1200 Denier | ||||||||||
Pick – Denisity | 3 – 150 | ||||||||||
Drive | Direct Drive with Rush Start Motor and Electro Magnetic Brake Push Button Switches | ||||||||||
Frame | Box Frame type Oil Bath System in Frame for Main Driving Parts Grease Lubrification. | ||||||||||
Power | 1.5 – 2.2kw | ||||||||||
Shedding | Plain Shedding for 16 Shaft Dobby Shedding for 16 Shaft Heald Frames Jacquard – 1344 Or 2688 Hooks |
||||||||||
Weft Insertion | Pum System – Plunger Type Nozzle : Steel / Ceramic Measuring & Storage (FDP System) Feeler : Electronics |
||||||||||
Let – Off Motion | Mechanical / Electronic | ||||||||||
Take – Up Motion | Mechanical / Electronic | ||||||||||
Cutter | Mechanical | ||||||||||
Temple | Top Mounted 3 Loops – 5 Rows | ||||||||||
Selvange Formation | Intertwisting System by Plantary Gear Motion $ Stop Motion for Leno Yarn | ||||||||||
Electric Section | Optical Feeler Monitor Terminal Indicator | ||||||||||
Cloth Drying | Slit Tube Type Suction Drying System with High Pressure Blower & Water Separator. |
