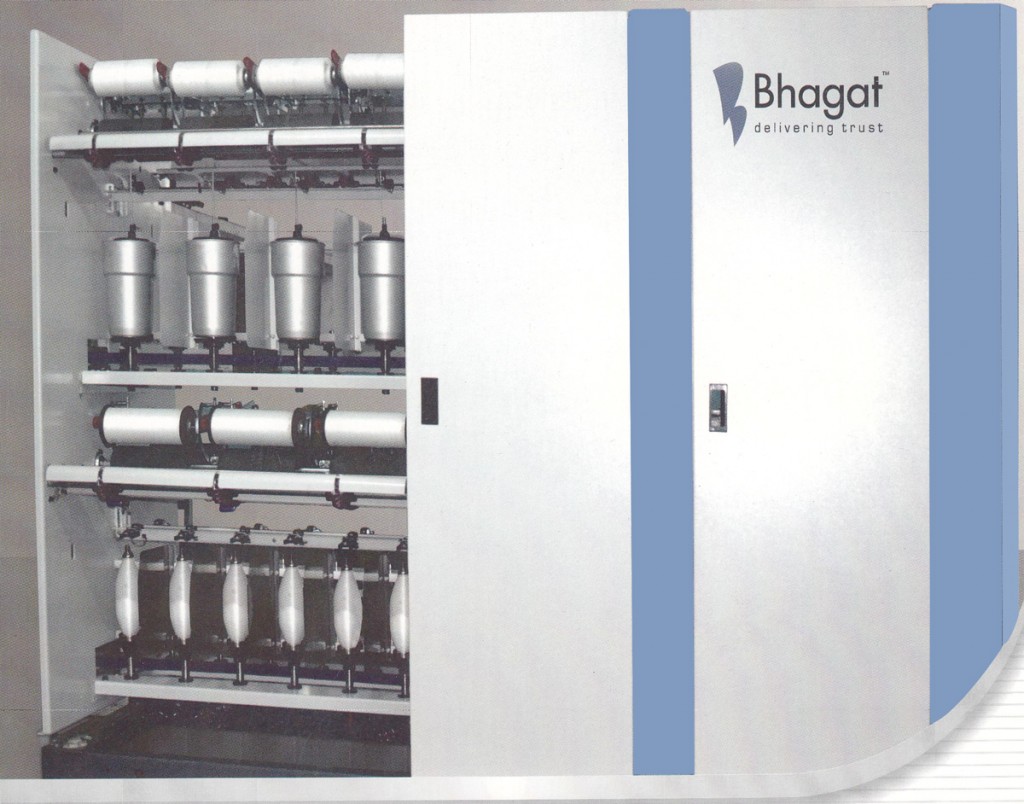

Thread Ply Twister

THREAD PLY TWISTERthread-ply-twister


TECHNICAL SPECIFICATIONS
THREAD PLY TWISTER OR CABLE TWISTER
MODEL: PT-ST  70/120

PT PT Individual MachineST ST Individual Machine

No. Of Spindles 240 288 336 384 432 528 160 192 224 256 288 352
Take-Up Positions 120 144 168 192 216 264 160 192 224 256 288 352
ST PT COMBINED MACHINE
No. Of Spindle 120 144 168 192 216 264 80 96 112 128 144 176
Take-Up Positions 60 72 84 96 108 132 80 96 112 128 144 176
No. of Section 10 12 14 16 18 22 10 12 14 16 18 22
Section Pitch 1090mm
Spindle Pitch 178mm 270mm
Spindle RPM (Mechanical) 14000 12000
Spindle Pot Dia 70mm/80mm 110mm for 1600 Gms feed & 120 Dia. for 2200 Gms feed
Feed Package 32 * 36 * 270mm / 32 * 36 * 300 mm Cop Take-Up-Package of Primary Twist
Feed Package Wt. Up to 1100 Gms
Take-Up-Package Wt. Weight-1600 Gms D/F Bobbin of 42 * 110 * 252
Weight-2200 Gms D/F Bobbin of 50 * 125 * 252
Dia. 57/69 * 200mm OR 230mm Lenght Paper Tube
Up to 2200 Gms
Take-Up yarn speed 80 MPM 80 MPM
Denier Range 100 TO 600 200 TO 900
Ply Possibility 2 PLY & 3 PLY
DIMENSIONS
Machine Lenght In Feet 41.9 49.1 56.2 63.4 70.5 84.8 41.9 49.1 56.2 63.4 70.5 84.8
Machine Lenght In MM 12780 14960 17140 19320 21500 25860 12780 14960 17140 19320 21500 25860
Machine Height 1750mm
Machine Width 975mm
POWER SPECIFICATION
Connected Power (HP) 7.5 7.5 10 10 10 12.5 7.5 7.5 7.5 10 10 10

SALIENT FEATURES:

  • The latest technology for manufacturing of all kinds of threads up to 6 Ply. From any filament flat and texturised yarn.
  • TFO spindle provided with plyer and protection pot help hegh productivity and smooth operation.
  • 2200 gms and above knotless take-up package on paper tube is directly marketable.
  • Yarn Detectors installed at individual ply avoid single ply process with help of cutter.
  • Common for both ply allow Primary Twisted Yarn Assembly with uniform tension.
