Low Twist TFO

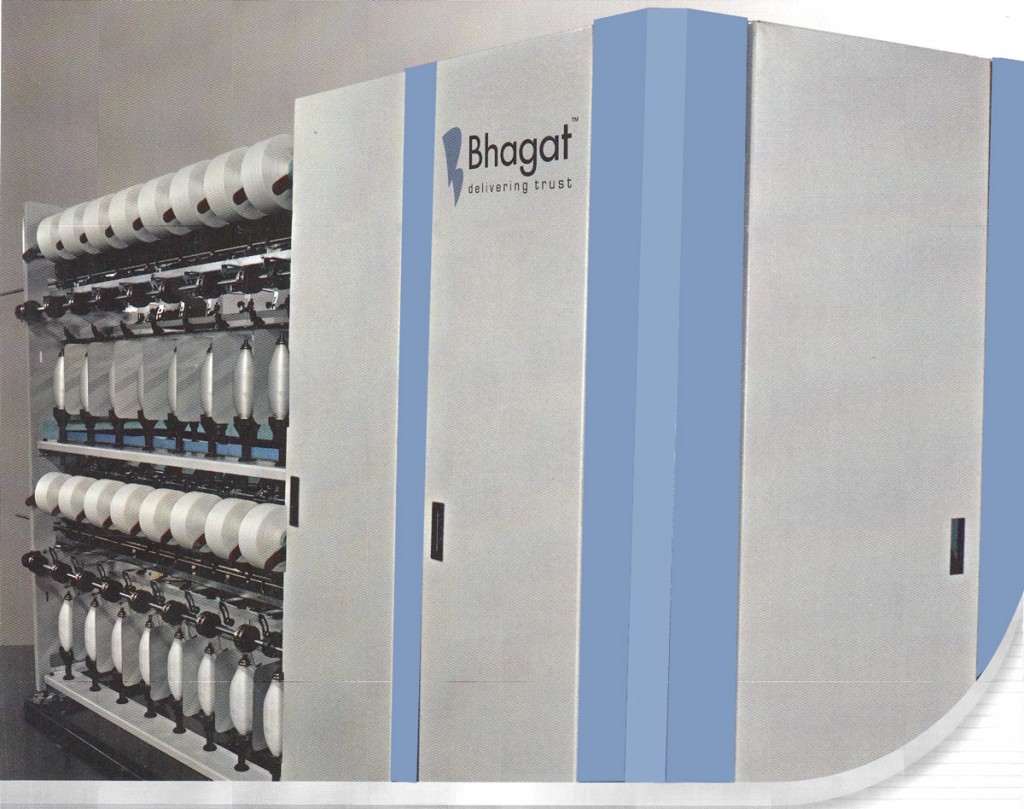

Low Twist Two-For-One Twister

Low-Twist-Two-For-One-Twister


TECHNICAL SPECIFICATIONS OF TWO FOR ONE TWISTER
MODEL: BM-170

Spindle Pot Dia. (mm) 70∅ / 80∅ / 90∅
No. Of Spindles 320 350 384 408
No. Of Sections 10 11 12 17
No. Of Spindles / Section 24 (8 Nos. / Deck / Side)
Spindle Pitch 205 mm
Denier Range 30 to 300
Twist Range 100 to 1000
Take – Speed 100 Mts/Min.
Spindle Speed 16000 RPM Mechanical / 14000 RPM Process
Take – Tube (mm) 57 / 69 ID * 170 Lenght
Take – Up Package Type Cylindrical / Bi-conical
Take – Up Package Dia. 200 mm
Take – Up Package Weight Max. 2000 Gms / 1000 Gms (Knotless)
Feed Package Type Tube
Feed Package Dimendsions (mm) ∅32 * ∅36 * 270/300 mm Lenght Max.
∅38 * ∅42 * 300 mm Lenght Max.
Maximum Feed Package Dia. 100 mm
Maximum Feed Yarn Net Weight Up to 1000 gms
Take-Up System Creadle with Auto Pressure adjustment against Package Buit-Up
Traversing Individual with Axial and Radial Disturbance
Feed Tensioner Ball and Ceramic Type
DIMENSIONS
Machine Lenght 18450 mm 20135 mm 21820 mm 23505 mm
Machine Width 850 mm
Machine Height 2220 mm
POWER SPECIFICATION
Max. Connected Power 12.5 HP * 2

SALIENT FEATURES:

  • Rigid sheet metal, double deck constuction offers long life maintenance free performance.
  • Individual traverse allowing individual package doffing ensures minimum knots and down time of machine for doffing. Ultimately efficiency of the machine is more.
  • Cradle with spring loaded pressure damping mechanism simple ball and socket type bearing and self centering disc offers excellent package build up.
